AUTOMATIC WINDER Mod. MBM 451 DAU

MAIN FEATURES:

Product to roll up Modified bituminous membrane
Winding direction both direction
Main drive force 600 N
Max winder torque 38 Nm
Max product diameter 300 mm
Max product height 1300 mm
Winding speed (10 m linears roll) up to 8 rolls per minute
Product thickness da 0,5 a 6 mm
Measure accurancy ±5 mm

ELETRIC FEATURES:

Main drive motor N° 2 brushless drive 6,0 kW
Spindle motor N° 2 brushless drive 6,0 kW
Cutter motor three-phase motor 1,1 kW
Hydraulic services three-phase motor 11 kW
Voltage 380 V. three-phase
Ground connection min. 35 mm²

CONTROLS and COMMANDS FEATURES:

  • Commands board

    (separated from machinery), size: 1000 mm x 2000 mm x 600 mm

  • Control:

    • PLC
    • PC for workflow and control
    • N. 4: brushless drive converter with axis control

  • Control panel (on board):

    • 12-inch LCD Color Monitor with touchscreen

  • Controls and regulation (on touchscreen).

    Possibility to save and recovery preset with this characteristics:

    • Max speed
    • Spindle torque
    • Hooking speed
    • Roll lenght
    • Adhesive tape lenght
    • Notch position

  • General settings:

    • Threading speed
    • Taping speed
    • Acceleration ramp
    • Deceleration ramp
    • Notch search speed
    • Timing

  • Push button pannel:

    • Manual-Automatic switch
    • Start-Stop cyle
    • Threading
    • Cut
    • Ejection
    • Packaging
    • Notch alignment

FEATURES DESCRIPTION:

HIGH PRECISION FOR ROLLS LENGHT

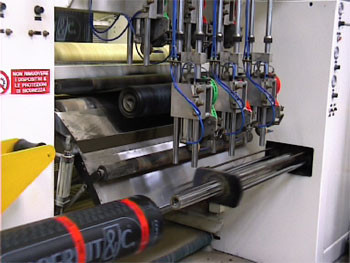

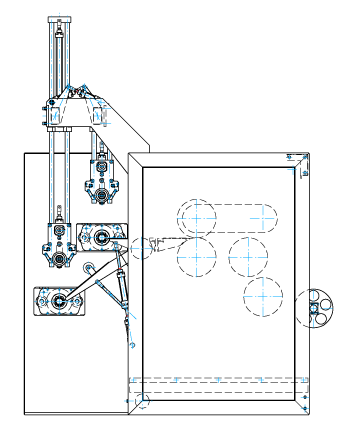

Avvolgitore Vista Laterale The xPlants® four rolls drive system permits an high precision roll measurement without take care of reinforcement position or products thickness. High braking precision and ramp acceleration are guaranteed by brushless drive, in eletric axis, with high efficiency gearbox as the new generation tools machineries.

STRONG SPINDLE HOOKING

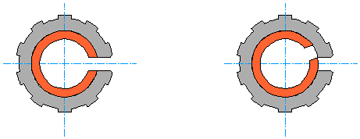

Dettaglio aggancio aspo Membranes are held all height long by a catching system inside xPlants® spindle. The system is very useful with tiny or soft products or using a reverse winding. This catching system could be setted off in the preset preferences.

CUT

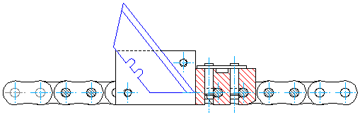

Dettaglio lametta Three commercial blades (Stanley 19x38) are mounted on three blade support on a triple chain. The blade support could be replaced in few seconds. The cut system could be left up for cleaning and membrane jam problems.

STRONG and SIMPLE EJECTION

Dettaglio lametta Two hydraulic cylinders push the ejection plate out on the spindle working also as guide. Hydraulic oil prevents problems on mechanical parts by damping the impact.

OTHER FEATURES

  • no manteinance brushless drive
  • "timing" belt and pulley
  • ratio 1/1 for spindle motor
  • completly eletronic notch align
  • Indipendent adhesive tape device on vertical axis
